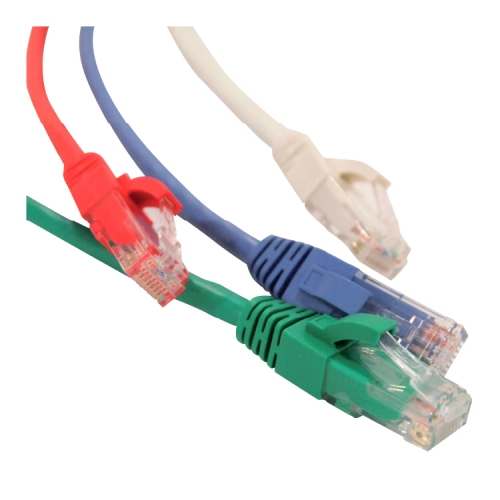

Unshielded Patch Cord

- Description
- · Comply with ANSI/TIA-568-C.2 performance levels
· Architectural design and flexibility - support max. 6-connection channels
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
· Cable consists of 24AWG~26AWG wire, each four pair twisted at a different lay length.
· Wiring T568A or T568B
· Comply with plug specifications of 47 CFR part 68 for 8 Pin Modular Plug
· A various of color support
· RoHS compliant
- Part Lists
- LS-PC-UC6A-xx-yyy (PVC Jacket)
LS-PC-UC6AL-xx-yyy (LSZH Jacket)
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
· Analog & digital voice (VoIP) and video
· Full broadband & baseband video
